Ukraine 10*10*1.1-1.4m Invisble Wire Mesh with 0.5 -0.9mm Steel Wire for Low Visible Wire Putanka (MZP) Anti Tank Barrier Fence
Invisible wire barrier is a kind of wire mesh barrier used in Ukraine military protection fence, in Ukrainian language, it called: (МПП, Путанка, МПП Плутанка, малопомітна перешкода, малопомітна дротяна сітка), it is a three-dimensional barrier made of rings made of high-carbon wire. This Wire is very thinn, wire thickness from 0.5mm to 0.9mm, so it almost invisible, people called it Low Visible Wire Mesh Barrier, mainly prevent tank moving forward.
10x10x1.1-1.4m size: Common Technical Data of Low Visible Wire Barrier:
Weight of the set: KG Up to 30
Overall dimensions in folded form: -------------------
Length 1200
Width 600
Height 120
Overall dimensions in expanded form: -------------------
Area 10x10
Height: 1.1 - 1.4m
Wire diameter: 0.5 - 0.9mm
The set includes: 40 steel rings, 40 steel pegs
warranty 3 years
Package Protection:
a) Oil Protection: First step need to spray oil on the surface of Low Visible Wire Mesh.
b) Water Proof Paper: Second to use water proof paper to protect it
c) Shrink Film: Finally use shrink film to fasten it.
Accessories of Low Visible Wire Mesh:
a) rings
b) pegs = 9 peg or 7 peg
Workshop Show:
Following Picture is our No.1 workshop, with around 100 pcs production platform, can produce around 500 sets per day.
What happens when you hit an inconspicuous obstacle?
If a person tries to go through into the territory, he gets confused in it. There is no way t
o get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot. When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.
| Parameter | Meaning |
| Unfolded dimensions | 10x10x1.1-1.4 m |
| Wire diameter / number of garlands; | 0.9 mm / 20 pieces
0.8 mm / 20 pieces
0.6 mm / 20 pieces
0.5 mm / 20 pieces
twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 29 kg |
| Complete set of the MZP package with rings and pegs | 40 rings + 40 pegs |
Fast Questions & Answers:
| a) When did company foundation: | 2018 |
| b) Had this company exported to Ukraine? | Yes |
| c) What Products did this company exported to Ukraine? | Egoza, Putanka, |
| d) How many employees? | 820 |
| e) What is daily output of MZP (Putanka) / Low Visible Wire Barrier? | around 800 pcs |
| f) How many containers can export per Month? | 4-8 pcs |
| g) Is this company a factory? or trading company | Factory, but can export |
| h) What is the company's revenue? | CNY71,550,000 |
| i) Which seaport can export? | Qingdao, Tianjin, Ningbo etc |
| j) How many years did Cora work in this factory? | 7 years |
Installation Instruction:
Step-by-step instructions for installing a Low Visible Obstacle (LVO)
a): Place the coil in the right place Where it will be installed.
Important note: after deployment, the MZP is no longer assembled into the original coil. That is, it is necessary to take into account that it will no longer be possible to install it, and then assemble it back and move it to another place.
b): Divide the bay into two parts and lay them out in two directions. No need to cut anything.

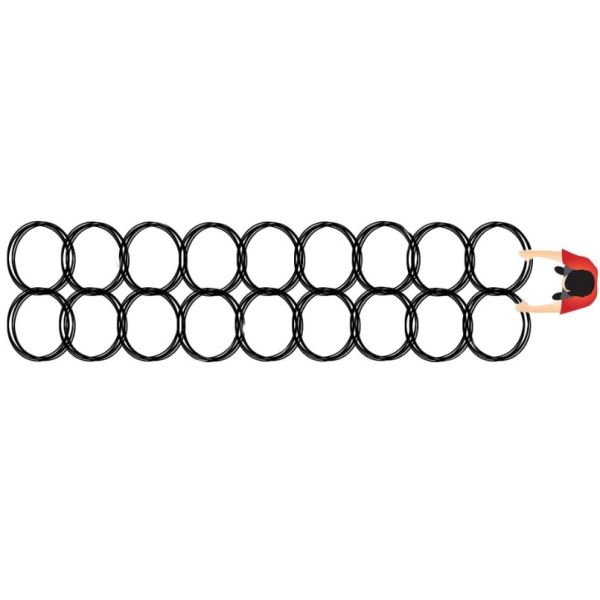

c): Stretch two rows of the bay to their full length.
d) Lay each row outwards. Two rows will make four.
e): To fix the coil with nails, you need to fix it with a thick coil with nails.
By this move and stretch the bottom it will shows thick lines, thin lines will extend upward,after fix the outermost layer of coils.
