GI Heavy Duty HESCO Defensive Barrier used for Military Defensive Bastion Protection Wall
Defensive barrier is a modular defensive barrier system that is made up of collapsible wire mesh baskets that are filled with sand or other materials. Baskets can be easily transported and assembled on site to create a barrier that can withstand blasts, projectiles, and other threats. The defensive barrier has been used in a wide range of applications, from military fortifications to flood protection walls.
operational principle
Used Spring to connect the mesh panel together into a rectangle container, which have many cells or single cell, Fill with sand,earth,cement, stone etc as a wall for protection fence.
The Common Specification for Defensive Barriers:
1. Wire Diameter: 4-5mm
2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm
3. Panel Size: 13 type size for any security protection,suddenly burst attacks
4. Geotextile: In heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: Hot dipped galvanized, Galfan wire.
7. Packing: Packed in pallet
The Specification of SX-3:
| UNIT | HEIGHT | WIDTH | LENGTH | CELL CONDITION |
| SX-3 (Beige) | 3'3" (1.00 M) | 3'3" (1.00 M) | 32'9" (10.00 M) | 5+5 CELLS |
| SX-3 (Green) | 3'3" (1.00 M) | 3'3" (1.00 M) | 32'9" (10.00 M) | 5+5 CELLS |
The Application for Welded Defensive Barriers:
1. Flood Control
The Military defensive Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Defensive Barrier as Flood Protection.
2. Protection Wall
More and more people used Welded Defensive barrier as a wall for homemade protection, light weight and easy operation to build a wall fast.
The Advantages of Welded Defensive Barrier:
1. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.

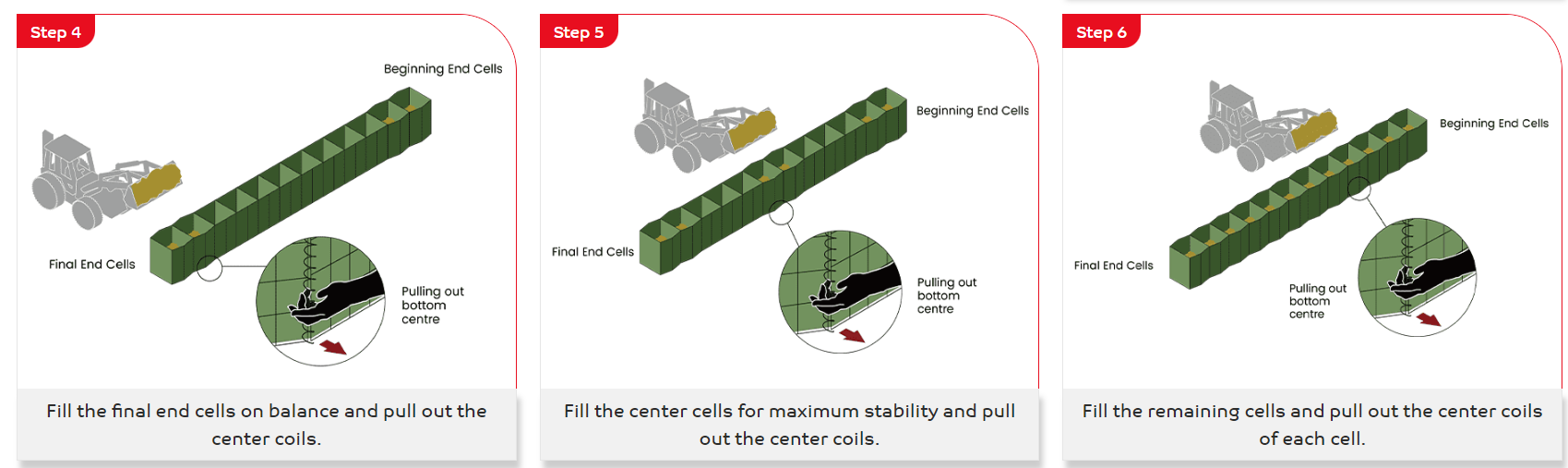

Filling Arrangement
A proper filling sequence is equally vital, especially for longer walls. Follow the steps below for correct filling and maximum stability. All steps are based on loading equipment straddling two cells at a time.
